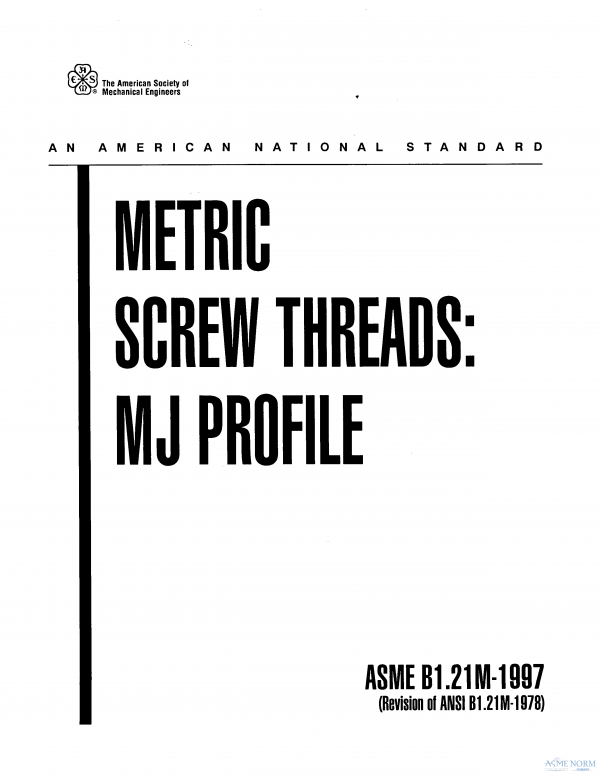

ASME B1.21M PDF
Original price was: $49.00.$33.32Current price is: $33.32.
Metric Screw Threads MJ Profile
Description
This standard contains general requirements for MJ screw threads with a basic profile design. Design data is included for standard and special threads.
Standard establishes basic triangular profile mj thread form; provides system designations; lists series diameter/pitch combinations diameters 1.6 200 mm; specifies limiting dimensions tolerances. characteristics metric threads minimum 0.15011p radius root external thread, also minor diameter internal increased asme b1.13m-metric screw threads: m profile thread form accommodate radius. contains general requirements design. design data included special threads.
